Micro Mini 4K HDMI Fiber Extender with External Audio

Name: Micro Mini 4K HDMI Fiber Extender with External Audio
Brand: E-link China Technology Co.,LTD
SKU: LNK-MHRA4K
Price: 134.00 USD
Availability: InStock

Szczegóły produktu

Place of Origin: China

Nazwa handlowa: E-link

Orzecznictwo: ROHS,FCC,CE

Model Number: LNK-MHRA4K

Warunki płatności i wysyłki

Minimum Order Quantity: 1 pcs

Cena: Negocjowalne

Packaging Details: Extender Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Najlepszą cenę

Skontaktuj się teraz

Specyfikacje

Opis

Specyfikacje

Podkreślić:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              External Audio HDMI Fiber Extender, Micro Mini HDMI Fiber Extender, 4K HDMI Fiber Extender


Keywords:	Fiber Extender	Operating Temperature:	-10 to + 60°C
Dimension (LxWxH):	2.87 x 1.73 x 0.69in (73x44x17mm)	Humidity:	5% to 90% RH (non-condensing)
Weight:	60g / 0.13 lb	Power Supply:	5~12V DC
Power dissipation:	<5W	Safety Approvals:	CE, FCC, Rohs

Keywords:	Fiber Extender
Operating Temperature:	-10 to + 60°C
Dimension (LxWxH):	2.87 x 1.73 x 0.69in (73x44x17mm)
Humidity:	5% to 90% RH (non-condensing)
Weight:	60g / 0.13 lb
Power Supply:	5~12V DC
Power dissipation:	<5W
Safety Approvals:	CE, FCC, Rohs

Opis

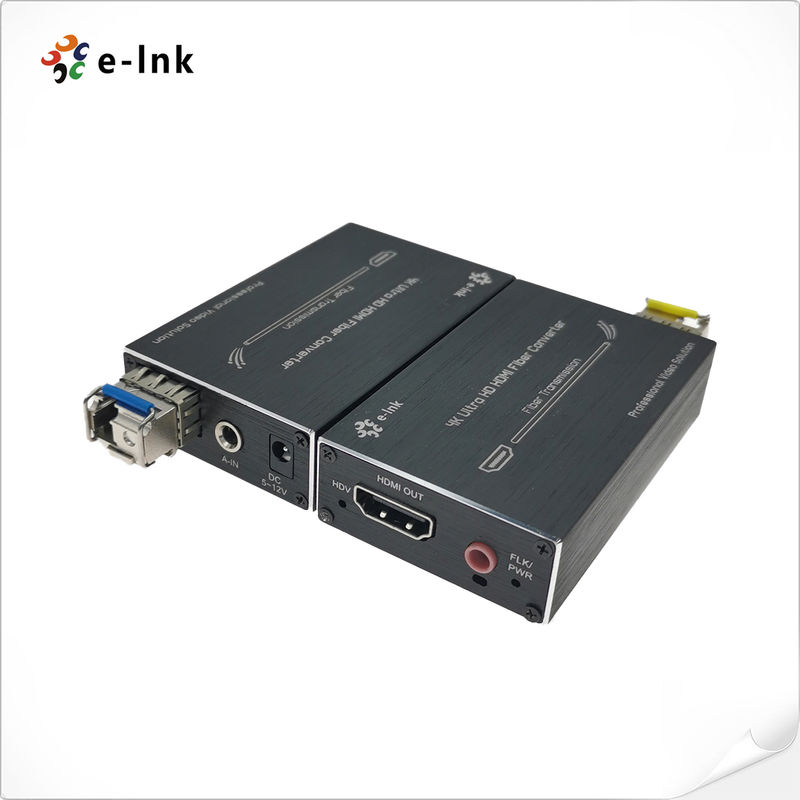

Micro Mini 4K HDMI Fiber Extender with External Audio

Micro Mini 4K HDMI Fiber Extender with External Audio Advantages

► HDMI 1.4a and HCCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC CEC HPD Signal Support

► Data rate up to 10.3Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to 4K*2K@30Hz Resolution

► Support external stereo audio

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► 850nm VCSEL and PIN Photo detector

► Operating Case Temperature: -10~60°C

Micro Mini 4K HDMI Fiber Extender with External Audio Overview

The LNK-MHA4K Series 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI 1.4a signal and stereo audio over optical fiber up to distances of 80km, at a resolution of 4Kx2K.

The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Micro Mini 4K HDMI Fiber Extender with External Audio Technical Indexes

Type of Extender	Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals	HDMI
Connector	Female HDMI type A
Signal Support	HDMI 1.4a HDMI format standard and HDCP compliant
Video Support	1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling	Color space, 420, 400
Dynamic EDID	Plug & Play, no need to learn
Audio Interface	3.5MM external stereo audio
Fiber Connector	SFP/LC
Bandwidth	10.3Gbps
Transmission Distance	300m (Over OM3 Fiber)
Transmission Distance	Up to 80km (Over Single-mode Fiber)
Operating Temperature	-10 to + 60°C
Storage Temperature	-20 to + 85°C
Humidity	5% to 90% RH (non-condensing)
MTBF	100,000 hours
Dimension (WxDxH)	2.87 x 1.73 x 0.69in (73x44x17mm)
Weight	60g / 0.13 lb
Power Supply	5~12V DC
Power dissipation	<5W
Safety Approvals	CE, FCC, Rohs

Micro Mini 4K HDMI Fiber Extender with External Audio Ordering Information

Model	Description
Model	Description
LNK-MHA4K-MM	Micro Mini HDMI Fiber Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
LNK- MHA4K-S20	Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
LNK- MHA4K-S40	Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
LNK- MHA4K-80	Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
LNK- MHA4K-S80	Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input

Micro Mini 4K HDMI Fiber Extender with External Audio 0
