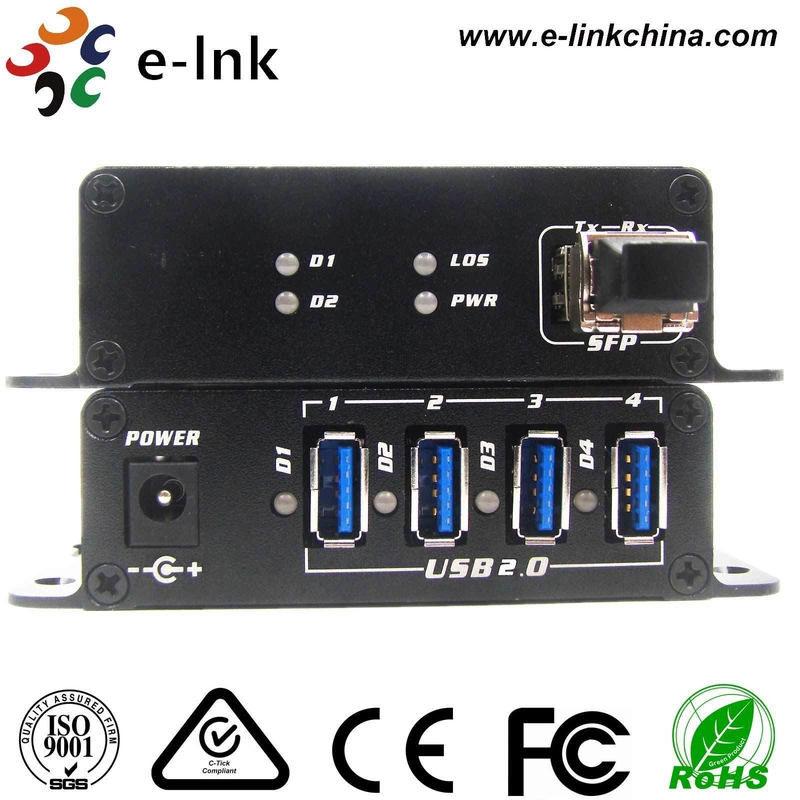

4 Port USB 2.0 Fiber Extender

Name: 4 Port USB 2.0 Fiber Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-U4F1-2.0
Price: 134.00 USD
Availability: InStock

Szczegóły produktu

Place of Origin: China

Nazwa handlowa: E-link

Orzecznictwo: CE

Model Number: LNK-U4F1-2.0

Dokument: E-link USB2.0 to Fiber Exte....0.pdf

Warunki płatności i wysyłki

Minimum Order Quantity: 1pcs

Cena: Negocjowalne

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Najlepszą cenę

Skontaktuj się teraz

Specyfikacje

Opis

Specyfikacje

Podkreślić:

Dimensions (LxWxH)::	LOCAL EXTENDER : 10411428, REMOTE EXTENDER: 10411428	Operating Temperature::	32° to +122° F. (0° to +50° C)
Limited Warranty:	2 year warranty	Net Weight:	LNK-U4F1-2.0-L: 200g LNK-U4F1-2.0-R: 350g

Dimensions (LxWxH)::	LOCAL EXTENDER : 10411428, REMOTE EXTENDER: 10411428
Operating Temperature::	32° to +122° F. (0° to +50° C)
Limited Warranty:	2 year warranty
Net Weight:	LNK-U4F1-2.0-L: 200g LNK-U4F1-2.0-R: 350g

Opis

4 Port USB 2.0 Fiber Extender

Product Advantages

► Extends USB 2.0 high-speed and USB 1.1 (low-speed, full-speed) devices

► Operates with USB 1.1 and USB 2.0 hosts

► Supports all USB devices up to 480 Mbps

► Distance of up to 200m over multi-mode fiber optics (SFP transceiver modules included)

► Integrated hub provides four remote USB 2.0 ports.

► Number of devices can be increased using additional USB hubs

► Transparent USB extension

► Low RFI / EMI profile for sensitive applications

► Surface-mountable

Technical Indexes

Performance
Local Unit	Upstream Port	USB2.0 Type A Male
	Downstream Port	USB2.0 SFP*1
Remote Unit	Upstream Port	USB2.0 SFP*1
	Downstream Port	4-Port
	USB Power Supply	1*500mA
Operation Mode	Support low speed(1.5 Mbps), full speed(12 Mbps), and high speed(480 Mbps) USB data transfer
Connections
USB2.0 Input	USB2.0 Type-A Female
USB2.0 Output	USB2.0 Type-A Female
Optical	1x SFP port
Cable
Fiber Cable Type	Multi-Mode
Max. Length	≤ 200 meters
Mechanical
Construction	High-impact Alufer enclosure
Dimensions (L x W x H) (Unit:mm)	LOCAL EXTENDER : 10411428 REMOTE EXTENDER: 10411428

Net Weight	LNK-U4F1-2.0-L: 200g LNK-U4F1-2.0-R: 350g
Environmental
Operating Temperature	32° to +122° F. (0° to +50° C)
Storage Temperature	-40° to +185° F. (-40° to +85° C)
Operating Humidity	5% to 80% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
Power Requirements
External AC Power Adapter	Local Unit:Power adapter at host is not required
	Remote Unit: Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A 5/2.5mm jack
Power Consumption	LNK-U4F1-2.0-T: 2watts LNK-U4F1-2.0-R: 3.5 watts
Warranty
Limited Warranty	2 year warranty

Overview

LNK-U4F1-2.0 Series provides true USB 2.0 extension at up to 480 Mbps over 200m/600ft of multi-mode fiber optics, without the need of additional software drivers.

A true plug-and-play solution, the LNK-U4F1-2.0 Series is compatible with all leading operating systems, and supports all USB 1.1 and 2.0 device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers.

An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub.

Application

4 Port USB 2.0 Fiber Extender 0

Ordering Information

Model	Description
LNK-U4F1-2.0	USB2.0 to Fiber Extender, Single 5V 2A External power supply
