SDI Fiber Converter Overview

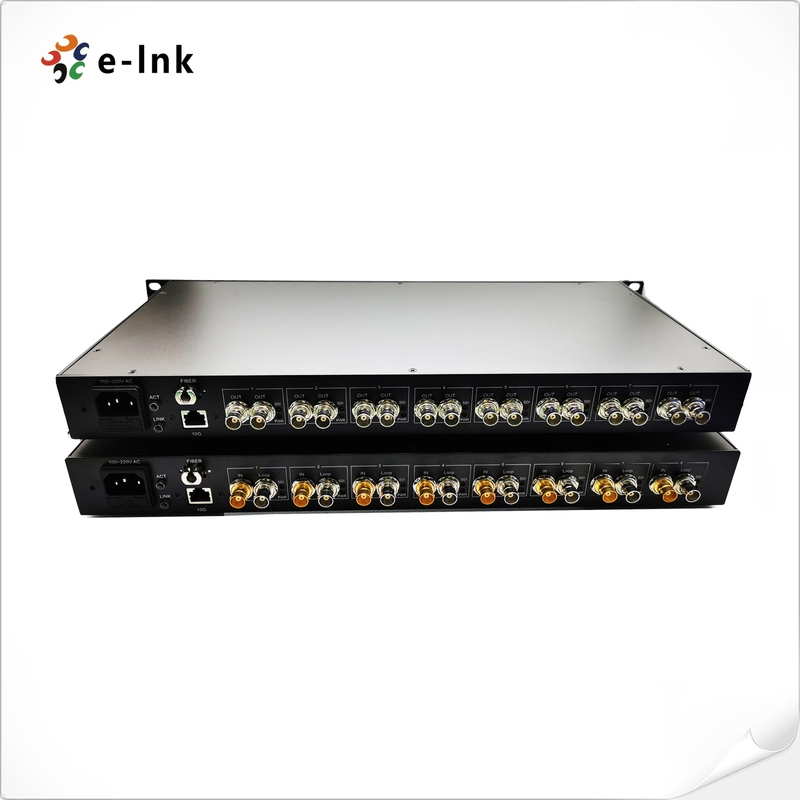

• The E-link LNK-3G8V10GE represents a cutting-edge fiber optic transmission solution engineered for bandwidth-intensive professional applications. This advanced extender simultaneously transmits eight channels of broadcast-quality 3G-SDI video and one 10G Ethernet IP channel over a single-mode fiber optic link, delivering exceptional signal density and network performance.

  Utilizing sophisticated optical technology, the system ensures flawless real-time processing of high-definition video while providing robust 10 Gigabit Ethernet connectivity for demanding IP-based systems. This integrated

•  approach significantly enhances system scalability and ensures full compatibility with modern high-performance networking infrastructure, making it ideal for next-generation broadcast and surveillance systems.

  The complete electrical isolation provided by fiber optic transmission eliminates electromagnetic interference, guaranteeing unprecedented reliability and security for mission-critical operations. This extender effectively overcomes the limitations of traditional coaxial-based systems, establishing new benchmarks for signal quality and transmission distance.

  Supporting flexible transmission ranges from standard 20km to extended 80km configurations, this solution is particularly valuable for large-scale broadcast facilities, sports venues, and high-resolution surveillance networks requiring simultaneous multi-channel video transport and high-speed data communication. The system's advanced architecture makes it an ideal choice for 4K production environments, IP-based broadcast workflows, and other applications where signal integrity and network performance are paramount.

Features

Application Scenarios

• Large-Scale Broadcast Productions
  Enables multi-camera signal aggregation for major event coverage, supporting eight simultaneous 3G-SDI feeds with 10G network backbone for IP-based production systems and real-time content distribution

• Sports Broadcasting Facilities
  Facilitates stadium-wide video distribution for live sports production, transmitting multiple camera angles with embedded audio and high-speed data for instant replay systems and statistical analysis

• 4K Production Environments
  Supports ultra-high-definition workflows in broadcast centers and production houses, providing multi-channel SDI transport with 10G Ethernet for 4K content management and file-based workflows

• Live Event Venues
  Enables integrated signal distribution in convention centers and performance arenas, carrying multiple video sources alongside network data for digital signage and audience interaction systems

• Broadcast Network Infrastructure
  Establishes inter-facility video links between production studios and transmission centers, supporting multi-program transport with SMPTE standard compliance and network redundancy

• Remote Production Systems
  Facilitates distributed production models by extending multiple camera signals from venue locations to centralized production hubs with 10G data connectivity for shared storage and collaborative editing

• Government Command Centers
  Provides mission-critical video distribution for security operations, supporting multi-source surveillance feeds with high-speed data transmission for situation awareness and emergency response

Specifications

Order Information

Application Display Diagram
