Szczegóły produktu
Miejsce pochodzenia: CHINY
Nazwa handlowa: E-link
Orzecznictwo: ISO9001, CE, ROHS, FCC
Numer modelu: LNK-POE2GP
Warunki płatności i wysyłki
Minimalne zamówienie: 1PCS
Cena: US$7.9-US$9.9
Szczegóły pakowania: Akcesoria światłowodowe HDMI Standardowe opakowanie kartonowe
Czas dostawy: 1-3 dni robocze
Zasady płatności: T/T, Western Union, Moneygram, PayPal
Możliwość Supply: 1000/miesiąc
Napięcie wejściowe: |
9 do 48 VDC +/- 5%, maksymalnie 56 VDC |
Szybkość danych Ethernet: |
10/100/1000 Mb/s *1000 Mb/s - 1 gigabit |
Maksymalny prąd wyjściowy: |
1a |
Wewnętrzny rozmiar przewodu: |
Lita miedź 24 AWG |
Materiał mieszkaniowy: |
Abs |
Rozmiar złącza prądu stałego: |
5,5 x 2,1 mm |
Napięcie wejściowe: |
9 do 48 VDC +/- 5%, maksymalnie 56 VDC |
Szybkość danych Ethernet: |
10/100/1000 Mb/s *1000 Mb/s - 1 gigabit |
Maksymalny prąd wyjściowy: |
1a |
Wewnętrzny rozmiar przewodu: |
Lita miedź 24 AWG |
Materiał mieszkaniowy: |
Abs |
Rozmiar złącza prądu stałego: |
5,5 x 2,1 mm |

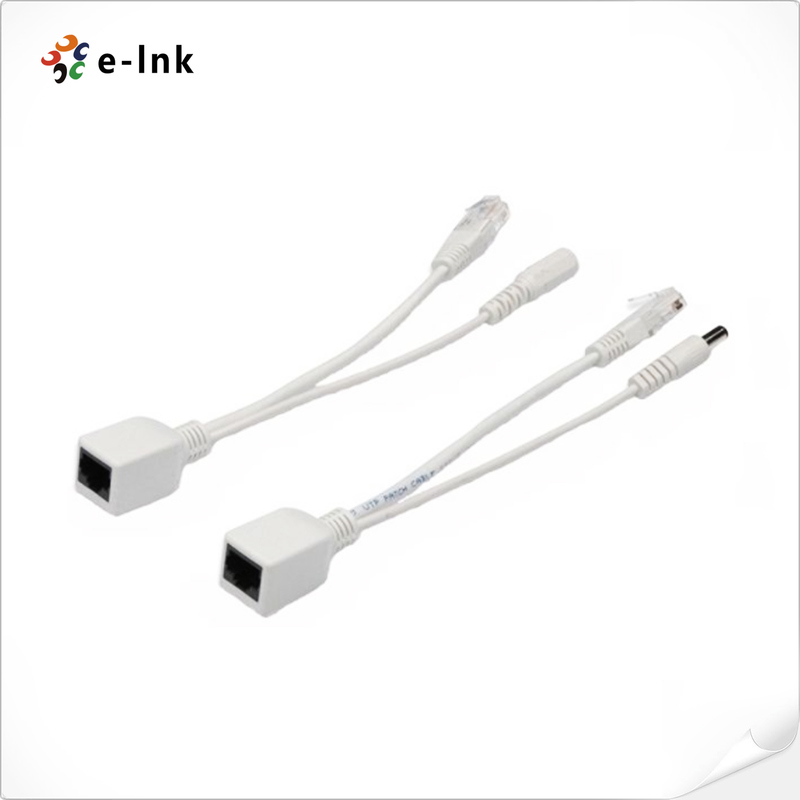

Model : LNK-POE2GP
Product Description & Overview
The LNK-POE2GP represents a professional-grade Gigabit Passive PoE solution that combines both
injector and splitter functionality in a single, cost-effective package. Engineered to meet rigorous
networking standards, this comprehensive kit delivers reliable power and data transmission for various
network deployments. The system features universal 5.5×2.1mm DC connectors and maintains full
compatibility with IEEE 802.3af/at specifications, ensuring seamless integration with modern network
infrastructure.
This advanced passive PoE kit supports comprehensive Ethernet speeds ranging from 10Mbps (10BASE
-T) to 1000Mbps (1000BASE-T), providing versatile connectivity options for diverse networking requirements.
The internal construction utilizes premium 24 AWG solid copper wiring with shielded connectors and integrated
drain wire, delivering superior signal integrity and electromagnetic interference protection. A clearly visible
green LED voltage indicator enables instant power status monitoring, simplifying installation and troubleshooting
processes.
Ideal for network administrators and installers, this Gigabit Passive PoE solution offers robust performance in
various applications including IP surveillance systems, wireless access points, and VoIP phone deployments.
The kit's optimized design ensures maximum power efficiency while maintaining data integrity across extended
cable runs. With its professional-grade components and thoughtful engineering, this complete PoE solution
provides exceptional value for both commercial and residential networking projects requiring reliable power-
over-Ethernet capabilities without the complexity of active PoE systems.
Key Features Bullets
Complete Plug-and-Play Solution
Includes both passive injector and splitter for immediate deployment
Universal Voltage Compatibility
9-48V wide input range with standard 2.1×5.5mm DC connectors
Full Gigabit Network Support
Maintains 10/100/1000Mbps data rates across all connected devices
Broad Device Compatibility
Works with APs, CPE, IP cameras, phones and other DC-powered equipment
Standard Power Supply Utilization
Uses existing powered device power adapters for cost efficiency
Extended Deployment Range
Supports operation up to 150 feet depending on cable quality
Professional-Grade Construction
IEEE 802.3af/at compliant design ensures reliable performance
Zero Configuration Required
True plug-and-play operation for instant network expansion
Technical Specifications & Indexes
|
Standards: |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Input Voltage |
9 to 48VDC +/- 5%, Maximum 56VDC |
|
Power Pin Assignment |
• Data provide over pairs 1/2(+) and 3/6(-) |
|
• Power over spare pairs 4/5(+) and 7/8(-) |
|
|
Ethernet Data Rate |
10/100/1000 Mbps *1000 Mbps - 1 Gigabit |
|
Maximum Output Current |
1A |
|
Over Current Protection |
Yes |
|
Ethernet Connectors |
Shielded with Internal Drain Wire |
|
Internal Wire Size |
24 AWG Solid Copper |
|
DC Connector Size |
5.5 x 2.1 mm |
|
LED |
Green Indicating Voltage Present |
|
Housing Material |
ABS |
|
Dimensions |
Length = 8 inches (20.3 cm) |
|
Weight: |
96 grams (3.3 ounces) |
|
Operating Temperature: |
0°C to 45°C (-32°F to 113°F) |
|
Storage Temperature: |
-30°C to 70°C (-22°F to 158°F) |
|
Relative Humidity: |
5% to 90% non-condensing |
Ordering information
|
Model |
Description |
|
LNK-POE-2GP |
Gigabit 10/100/1000 802.3af/at Passive Power-over-Ethernet (PoE) Injector - Splitter Mid-Span Kit with 5.5 mm x 2.1 mm Size DC Connectors |
Application Scenarios
Deploying wireless access points in small to medium business networks
Powering IP surveillance cameras in retail and office environments
Supporting VoIP phone systems with combined data and power delivery
Enabling network connectivity for CPE devices in remote locations
Providing cost-effective PoE solutions for budget-conscious projects
