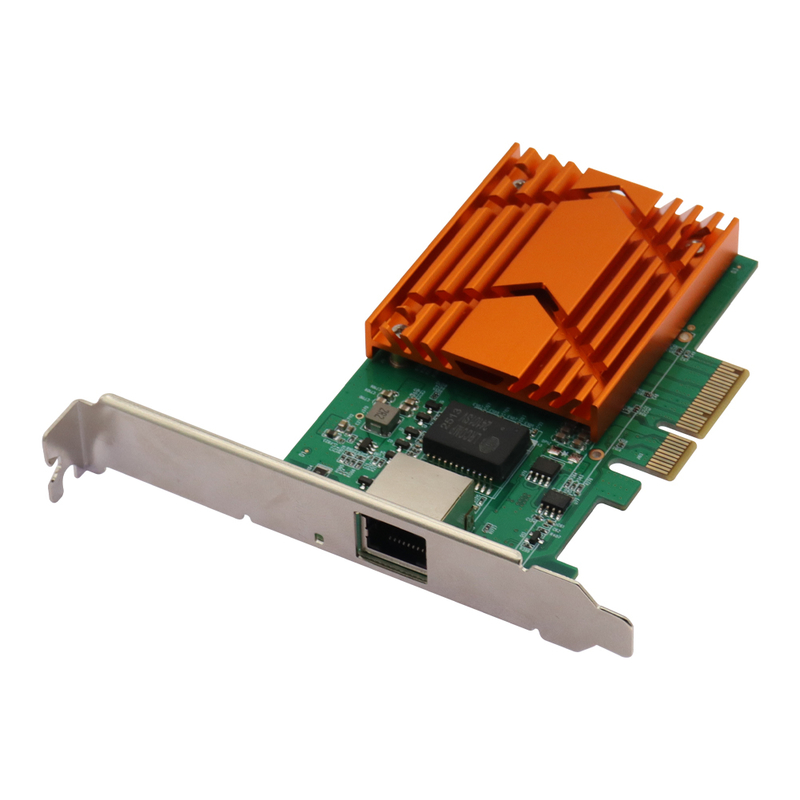

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter
PCIe x4 Single-port RJ45 10G Ethernet Network Adapter
Advantages
► PCIE x 4 Hardware Interface.
► Support systems: Windows, Linux, Ubuntu, etc
► Windows 7/8/8.1/10
► Windows Server 2008 R2/2012 R2/2016 R2/2019 R2
► Linux Stable Kernel version 2.6.32/3.x/4.x or later
► Linux CentOS/RHEL 6.5 / 7.x or later
► Ubuntu 14.x/15.x/16.x or later
► VMware ESX/ESXi 4.x/5.x/6.x or later
► 10/100/1000M/2.5G/5G/10Gbps data rate
► Jumbo frame support up to 16 KB.
► Extensive software support: Windows and Linux drivers; UEFI and PXE remote boot.
► MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload.
► Brown and Green color optional
Overview
LNK-NIC-10GE is a PCI Express x4 single port 10 Gigabit Ethernet network adapter based on the xxx chip solution. It is also compatible with PCle x8 and x16 channels. A high-performance, five rate NIC adapter that integrates PCle, MAC, and PHY to provide power and space-efficient connectivity to client systems. The PCle x4 universal interface gives this product great flexibility.
The integrated PHY can be routed through Cat 6a at speeds up to 10Gbps over a distance of 100 meters. It also supports 5Gbps network connections over traditional Cat 5e or Cat 6 cabling. The LNK-NIC-10GE is IEEE 802.3an & IEEE 802.3 bz compliant and enables 2.5GBASET, 5GBASE-T,10GBASE-T,1000BASE-T and 100BASE-TX transmission over 100m twisted pair cabling. MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload for high performance and low CPU utilization with up to 16 KB of massive data frame support.
Technical Indexes
|
Transmission medium
|
Copper
|
|
Copper Type
|
10GBase-T:Cat 7 or higher up to 30m
5GBase-T:Cat 7 or higher up to 30m
2.5GBase-T:Cat 6A or higher up to 100m
1GBase-T:Cat 6 or higher up to 100m
100MBase-T:Cat 6 or higher up to 100m
|
|
Baffle Height
|
Half & Full height
|
|
Power Consumption
|
4.7W
|
|
OS Support
|
Windows 7/8/8.1/10
Windows Server 2008 R2/2012 R2/2016 R2/2019 R2
Linux Stable Kernel version 2.6.32/3.x/4.x or later
Linux CentOS/RHEL 6.5 / 7.x or later
Ubuntu 14.x/15.x/16.x or later
VMware ESX/ESXi 4.x/5.x/6.x or later
|
|
Bus Type
|
PCIe v3.0 x4,compatible with x8, x16
|
|
Data rate per port
|
10/100/1000M/2.5G/5G/10Gbps data rate
|
|
Connector
|
1*10G RJ45
|
|
Standards compliant
|
IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair
IEEE 802.3bz 2.5/5GBASE-T
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.1Q VLANs
IEEE 802.3x Full Duplex and flow contro
IEEE 802.3az -
Energy Efficient Ethernet (EEE)
|
|
iSCSI
|
No
|
|
WoL
|
No
|
|
Jumbo Frames
|
Yes
|
|
DPDK
|
Yes
|
|
PXE
|
Yes
|
|
FCoE
|
No
|
|
Operating Temperature
|
0℃ to 55℃ (32℉ to 131℉)
|
|
Storage Temperature
|
-40℃ to 70℃ (-40℉ to 158℉)
|
|
Storage Humidity
|
Maximum: 90% non-condensing relative humidity at 35℃
|
|
Size
|
125 x 125 x 20 mm
|
|
Weight
|
90g
|
|
LED indication
|
Power: Light on when power on;
LNK/ACT: Light on when connected, light blinks when transfer data.
|
Ordering Information
|
Model
|
Description
|
|
LNK-NIC-10GE
|
PCIE x4 Single-port RJ45 10G Ethernet Network Adapter
|
