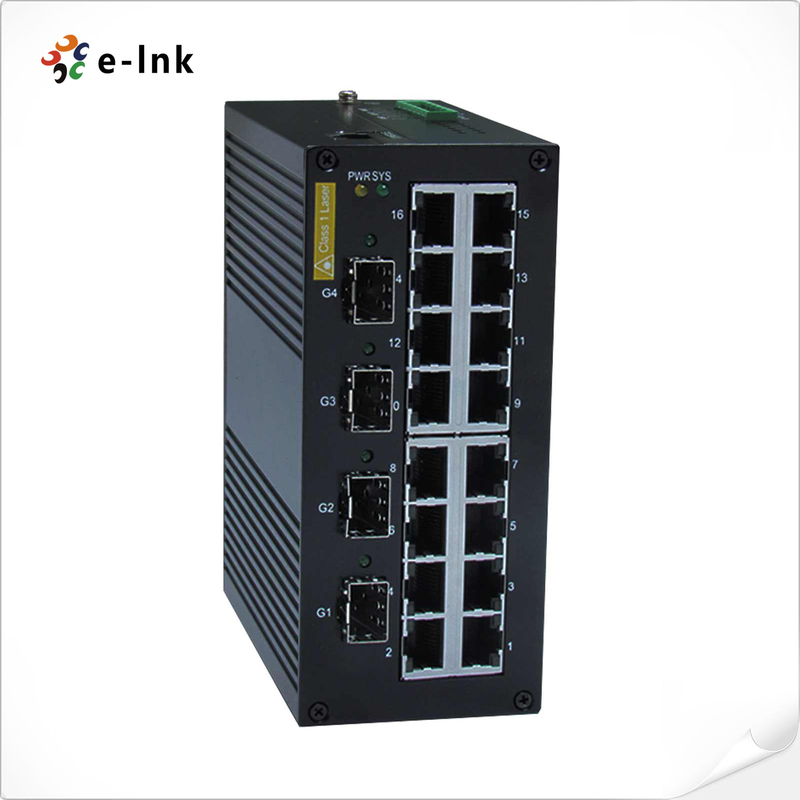

Managed Industrial Ethernet Switch: 16 x 10/100BASETX + 4 x 1000BaseX SFP

Model

16x10/100BaseTX ports+4x1000BaseX (SFP slots)

Benefits

Command Line Interface (CLI) for quickly configuration major managed functions

FMC Ring Protocol "Fi Ring" (recovery time < 20ms) and RSTP/STP for network redundancy

IGMP snooping for filtering multicast traffic

Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

Support port mirroring

Support Access Control List (ACL)

Storm control for any combination of multicast, broadcast and DLF traffic control

Rich QoS features for data traffic control and management

Port Trunk for optimum bandwidth utilization

SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security

SNMPv1/v2c/v3 for different levels of network management

RMON for efficient network monitoring and proactive capability

Bandwidth management prevents unpredictable network status

Lock port function for blocking unauthorized access based on MAC address

Automatic alarm through e-mail, relay output

Works with NMS FiVision (industrial network management software) for traffic monitoring and easy network troubleshooting

Specifications

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3z

IEEE 802.1D-2004 for STP

IEEE 802.1w for Rapid STP

IEEE 802.1Q for VLAN Tagging

IEEE 802.1p for Class of Service

IEEE 802.1X for Authentication

IEEE 802.3ad for Port Trunk with LACP

IEEE 802.3x for Flow Control

Protocols

IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client,

TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog,

SSH, SNMP Inform, SNTP Server/Client

MIB

MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,

Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control

IEEE 802.3x flow control, back pressure flow control

Switch Properties

Priority Queues: 4

Max. Number of Available VLANs: 256

VLAN ID Range:  VID 1 to 4094

IGMP Groups: 256

MAC Table Size: 8K

Packet Buffer Size: 2 Mbit

Interface

Fiber Ports: 1000BaseX (SFP slots), 100BaseFX

RJ45 Ports: 10/100BaseTX auto negotiation

Console Port: RS-232(RJ45 connector)

Alarm Contact: 2 relay outputs with current carrying capacity of 1A@24V

Power Requirements

Input Voltage: 24 VDC (18 to 36VDC), redundant dual inputs

Input Current:

OnAccess 740: <0.55A@24VDC

OnAccess 746: <0.55A@24VDC

Overload Current Protection: Present

Reverse Polarity Protection: Present

Connector: 6-contact terminal blocks

Mechanical Properties

Housing: Metal, IP30 protection

Dimensions: 60 x 112 x 138.5 mm

Weight: 760g

Installation: DIN-Rail mounting, wall mounting

Environmental Limits

Operating Temperature:

Wide Temp. models: -40 to +80°C (-40 to 180°F )

Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

Safety: UL 60950-1

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:

EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,

EN 61000-4-4 (EFT) Level3, EN 61000-4-5 (Surge) Level 3,

EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 3

Shock:  IEC 60068-2-27

Freefall:  IEC 60068-2-32

Vibration:  IEC 60068-2-6

Warranty Period: 5years
