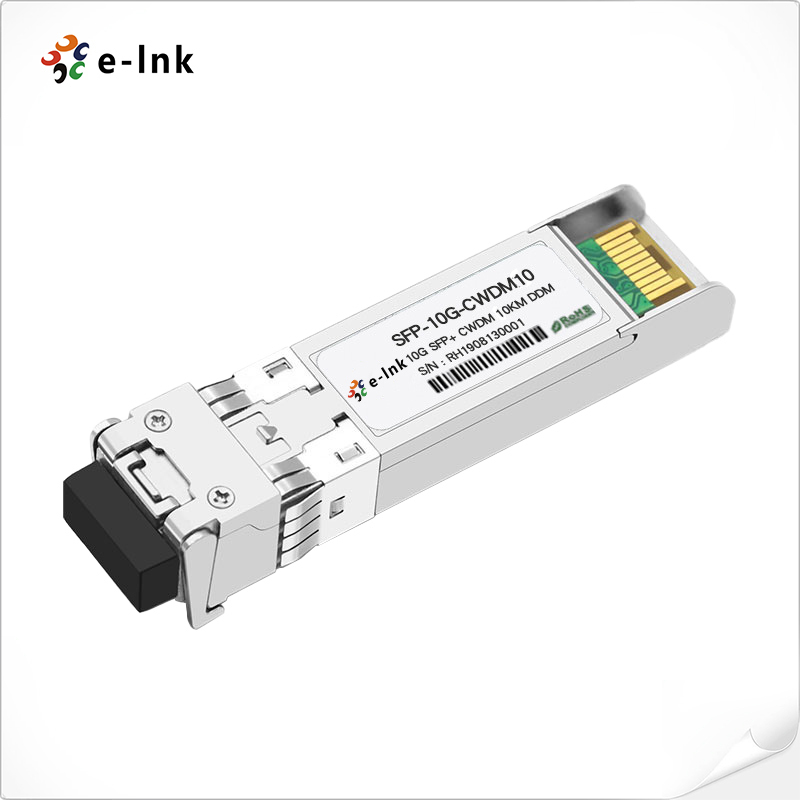

10Gb/s 10km CWDM SFP+ Transceiver

10Gb/s 10km CWDM SFP+ Transceiver

Advantages

Ø Supports 9.95 to 11.3Gb/s bit rates

Ø Hot-Pluggable

Ø Duplex LC connector

Ø 1270～1610nm CWDM DFB transmitter, PIN photo-detector

Ø SMF links up to 10km

Ø 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface

Ø Power Supply: +3.3V

Ø Power consumption<1.5W

Ø Temperature Range: 0~ 70°C

Ø RoHS compliant

Overview

E-LINK's LNK-CSFP-10Gxx-10 is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The LNK-CSFP-10Gxx-10 converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.

The high performance 1270 ～ 1610nm CWDM DFB transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 10km links.

The SFP+ Module compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

Technical Indexes

Application

Ø 10GBASE-LR/LW Ethernet

Ø CWDM Networks
