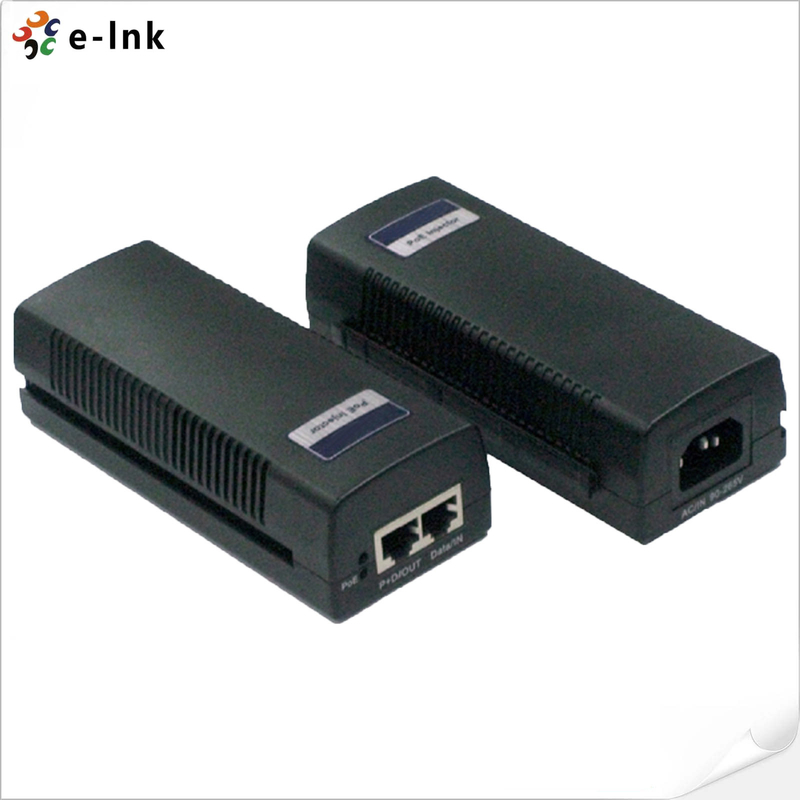

30W Gigabit PoE Injector
, IEEE802.3at Gigabit PoE Injector
Gigabit PoE Injector IEEE802.3at 30W
Gigabit PoE Injector IEEE802.3at 30W
Gigabit PoE Injector Advantage
► Up to 30W of PoE Power
► Compliant with IEEE802.3af/at Standard
► Support 10/100/1000Base-T
► Compliant with Limited Power Source (LPS)
► High Efficiency > 85%
► Low No Load Power Consumption < 0.5W
► Provide 2 LED indicators include Power LED(Green) and PoE LED(Orange)
Gigabit PoE Injector Overview
LNK-POE300AT 30W – 48V Gigabit PoE Injector is a long-distance driving, fast network performing,
strong PoE Output IEEE802.3af/at certified midspan. It is a single port indoor PoE injector that can
provide up to 30W based on the IEEE 802.3af/at standard.
The midspans are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP
videophones, thin clients and other power Ethernet end terminals with 30W of power. The solutions
support IEEE 802.3af/at powered devices and are also backward compatible and safe to use with
any IEEE 802.3af/at terminal. With plug and-play installation, they are easy and cost effective to
implement leveraging existing Ethernet infrastructure while at the same time providing the assurance
of a future proof network.
Gigabit PoE Injector Technical Indexes
|
Environmental
|
|
Operating Temperature:
|
-10°C to 50°C (14°F to 122°F)
|
|
Storage Temperature:
|
-20°C to 70°C (-4°F to 158°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Voltage Range:
|
100-240V AC @50/60Hz.
|
|
Output Voltage:
|
DC 48V
|
|
Power Consumption:
|
30 watts max.
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE 802.3af
|
|
|
IEEE 802.3at
|
|
Port:
|
RJ45
|
|
Pin Assignment
|
Data provide over pairs 1/2(+) and 3/6(-)
Power over spare pairs 4/5(+) and 7/8(-)
|
|
PoE Power Output
|
DC 48V/30-watt PoE via 2-pairs
|
|
LED Indicators
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (W×D×H):
|
145 x 58 x 39mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Plastic Case
|
|
Mounting Options:
|
Desktop
|
Gigabit PoE Injector Ordering Information
|
Model
|
Description
|
|
LNK-POE300AT
|
PoE Injector with Power Cord: 10/100/1000Mbps, IEEE 802.3at 30W
|
