PCIe x4 Jednoport RJ45 10G Ethernet Network Adapter

Szczegóły produktu

Miejsce pochodzenia: Chiny

Nazwa handlowa: E-link

Orzecznictwo: ROHS,FCC,CE

Numer modelu: LNK-NIC-10GE

Dokument: E-link LNK-NIC-10GE 10G Eth....0.doc

Warunki płatności i wysyłki

Minimalne zamówienie: 1 sztuk

Cena: $29.9-389

Szczegóły pakowania: Opakowania kartonowe

Czas dostawy: 3-12 dni roboczych

Zasady płatności: Akredytywa, T/T, Western Union, , Paypal

Możliwość Supply: 1000 szt./miesiąc

Najlepszą cenę
Skontaktuj się teraz
Specyfikacje
Podkreślić:

Karta sieciowa Ethernet RJ45 10G

,

Jednorazowy adapter sieci Ethernet 10G

,

Karta sieciowa Ethernet 10G PCIE X4

Bus Type:
PCIe v3.0 x4,compatible with x8, x16
Data rate per port:
10/100/1000M/2.5G/5G/10Gbps data rate
Operating Temperature:
0℃ to 55℃ (32℉ to 131℉)
Storage Temperature:
-40℃ to 70℃ (-40℉ to 158℉)
Dimensions (WxDxH):
125 x 125 x 20 mm
Weight:
90g
Bus Type:
PCIe v3.0 x4,compatible with x8, x16
Data rate per port:
10/100/1000M/2.5G/5G/10Gbps data rate
Operating Temperature:
0℃ to 55℃ (32℉ to 131℉)
Storage Temperature:
-40℃ to 70℃ (-40℉ to 158℉)
Dimensions (WxDxH):
125 x 125 x 20 mm
Weight:
90g
Opis

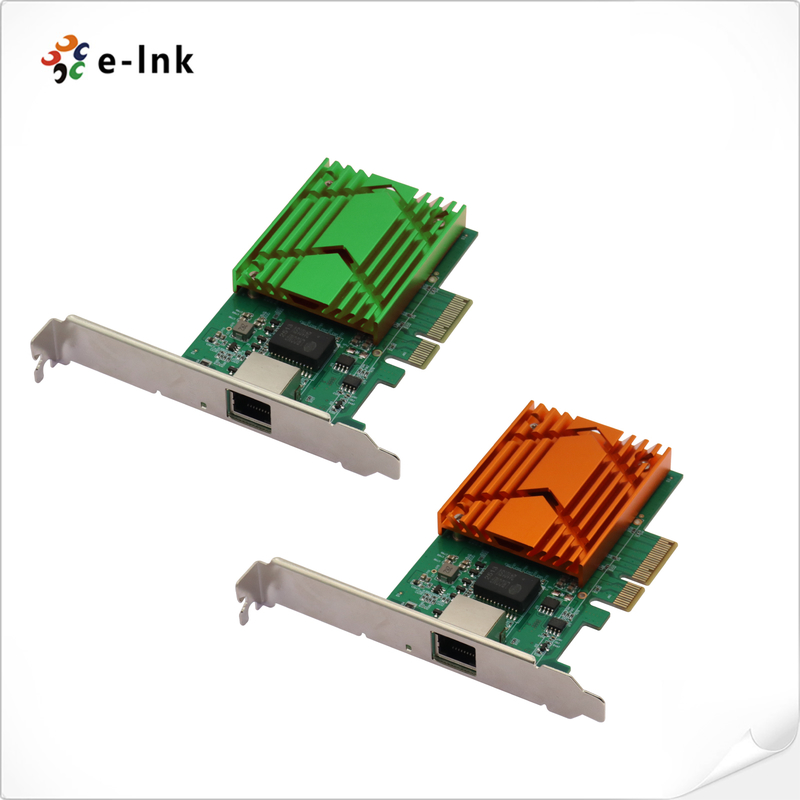

PCIe x4 Jednoport RJ45 10G Ethernet Network Adapter

Karta sieciowa Ethernet PCIE x4 Single-port RJ45 10G


Zalety

► Interfejs sprzętowy PCIE x 4.

► Obsługiwane systemy: Windows, Linux, Ubuntu itp.

► Windows 7/8/8.1/10

► Windows Server 2008 R2/2012 R2/2016 R2/2019 R2

► Linux Stable Kernel w wersji 2.6.32/3.x/4.x lub nowszej

► Linux CentOS/RHEL 6.5 / 7.x lub nowszy

► Ubuntu 14.x/15.x/16.x lub nowszy

► VMware ESX/ESXi 4.x/5.x/6.x lub nowszy

► Szybkość transmisji danych 10/100/1000M/2.5G/5G/10Gbps

► Obsługa ramek Jumbo do 16 KB.

► Obszerna obsługa oprogramowania: sterowniki Windows i Linux; zdalne uruchamianie UEFI i PXE.

► MSI, MSI-X, LSO, RSS i odciążanie sum kontrolnych IPv4/IPv6.

► Opcjonalny kolor brązowy i zielony


Przegląd

NIC-10GEPCI to karta sieciowa Ethernet PCI Express x4 z jednym portem 10 Gigabit oparta na xxx rozwiązaniu chipowym. Jest również kompatybilna z kanałami PCle x8 i x16. Wysokowydajna karta sieciowa z pięcioma prędkościami, która integruje PCle, MAC i PHY, aby zapewnić wydajne zasilanie i oszczędną przestrzeń łączność z systemami klienckimi. Uniwersalny interfejs PCle x4 zapewnia temu produktowi dużą elastyczność.

Zintegrowany PHY może być prowadzony przez Cat 6a z prędkością do 10 Gbps na odległość 100 metrów. Obsługuje również połączenia sieciowe 5 Gbps za pośrednictwem tradycyjnego okablowania Cat 5e lub Cat 6. LNK-PCI jest zgodny z IEEE 802.3an i IEEE 802.3 bz i umożliwia transmisję 2.5GBASET, 5GBASE-T,10GBASE-T,1000BASE-T i 100BASE-TX za pośrednictwem 100-metrowego okablowania z parą skręconą.MSI, MSI-X, LSO, RSS i odciążanie sum kontrolnych IPv4/IPv6 dla wysokiej wydajności i niskiego wykorzystania procesora z obsługą ramek danych o rozmiarze do 16 KB. Informacje dotyczące zamawiania


Model

Opis

LNK-

NIC-10GEPCI

Ex4 Jednoportowa karta sieciowa Ethernet RJ45 10G AdapterZdjęcie


PCIe x4 Jednoport RJ45 10G Ethernet Network Adapter
